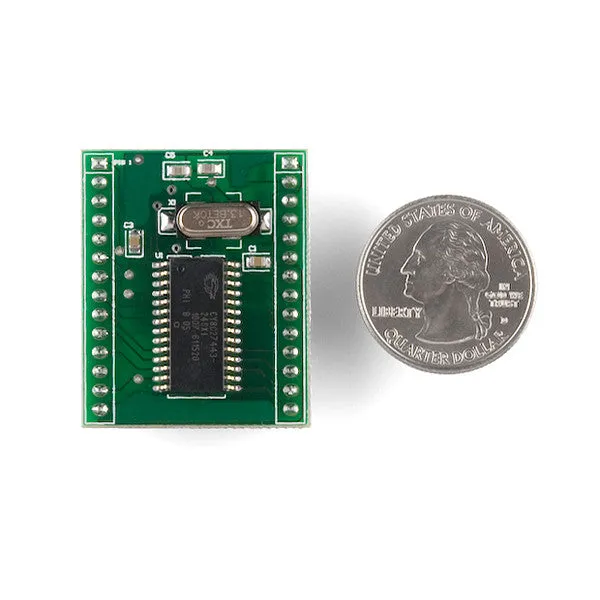

The SMB130 is a 28 pin DIP module that includes all necessary components for a 13.56 MHz RFID MIFARE®, aside from a PCB antenna.

The module communicates over UART or I²C with simple protocols. It also has 2 general purpose inputs and 2 general purpose outputs for switches, relays, etc.

Check below for MIFARE® RFID tags.

Note: You will need an antenna or evaluation board for this module to work. Check the related product below.

Features:

• UART interface up to 115200bps
• I²C interface up to 400 KHz
• Complete read/write module excluding antenna
• 5V supply
• 2 general purpose outputs
• 2 general purpose inputs
