Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 231723 |
| Body Style | Cylindrical |
| Connection Type | M12 4-pin |
| Frequency, Switching | 600 Hz |
| Function | Proximity |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Maximum Operating Temperature | 85 C |
| Measurement Range | 10 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M12 Threaded Non-Flush |
| Operating Temperature, Maximum | 85 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP-NO |
| Primary Type | Capacitive Proximity Sensors |
| Sensing Range | 10 mm |
| Shielding | Unshielded |
| Supply Voltage | 10-30 VDC |
| Technology | Capacitive |
| Termination | 3-wire |
| Type | Inductive sensor |
| Voltage Regulation | DC |
Overview

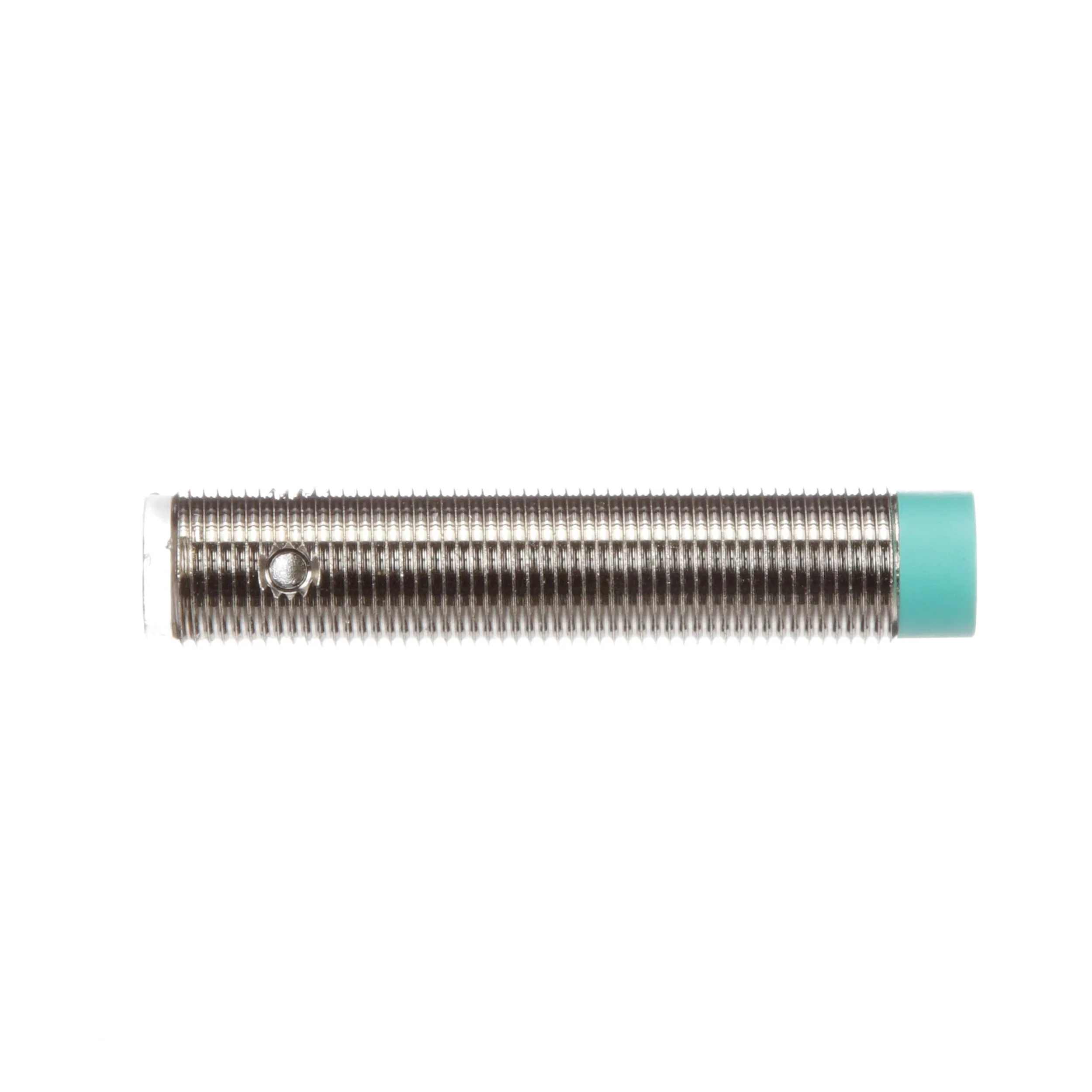

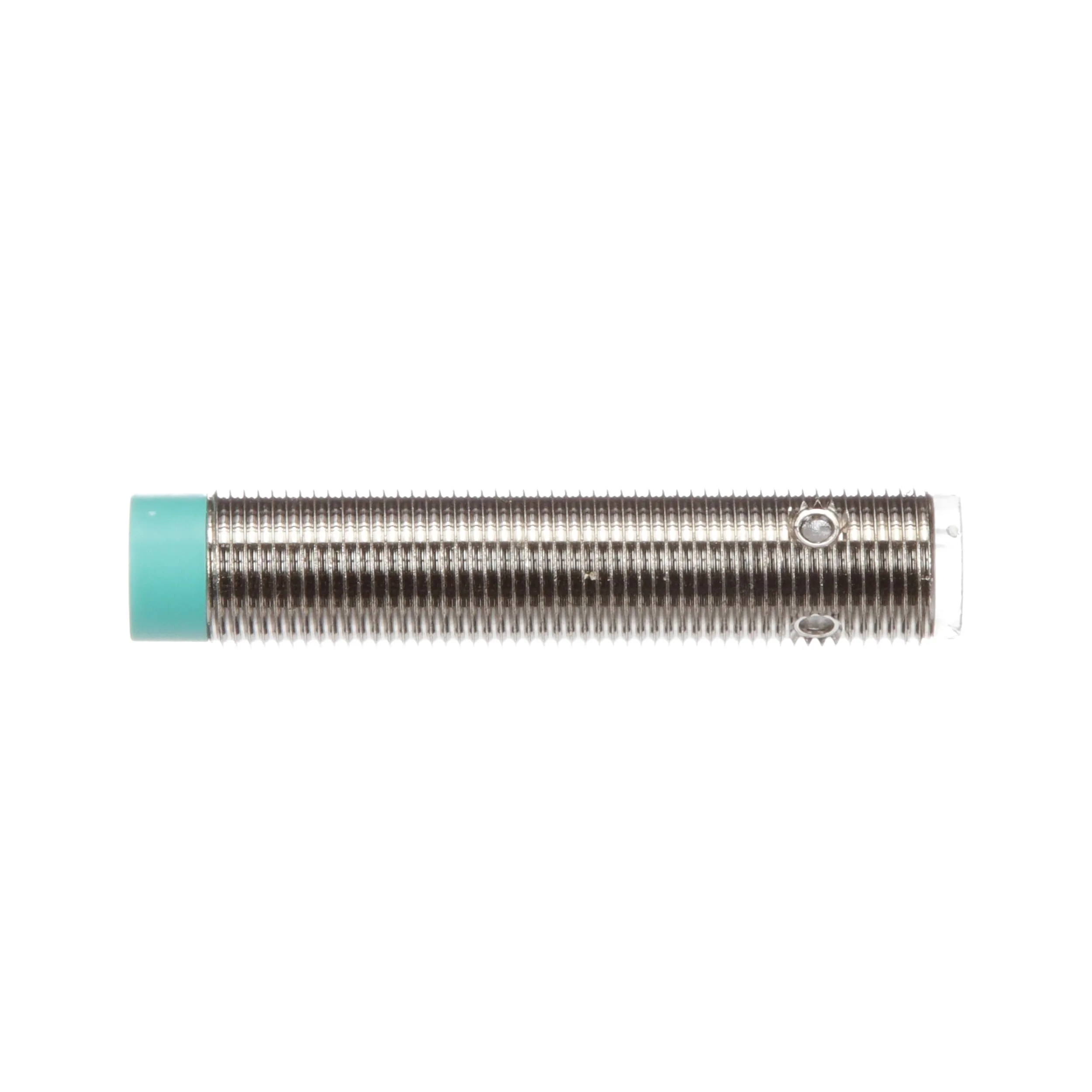

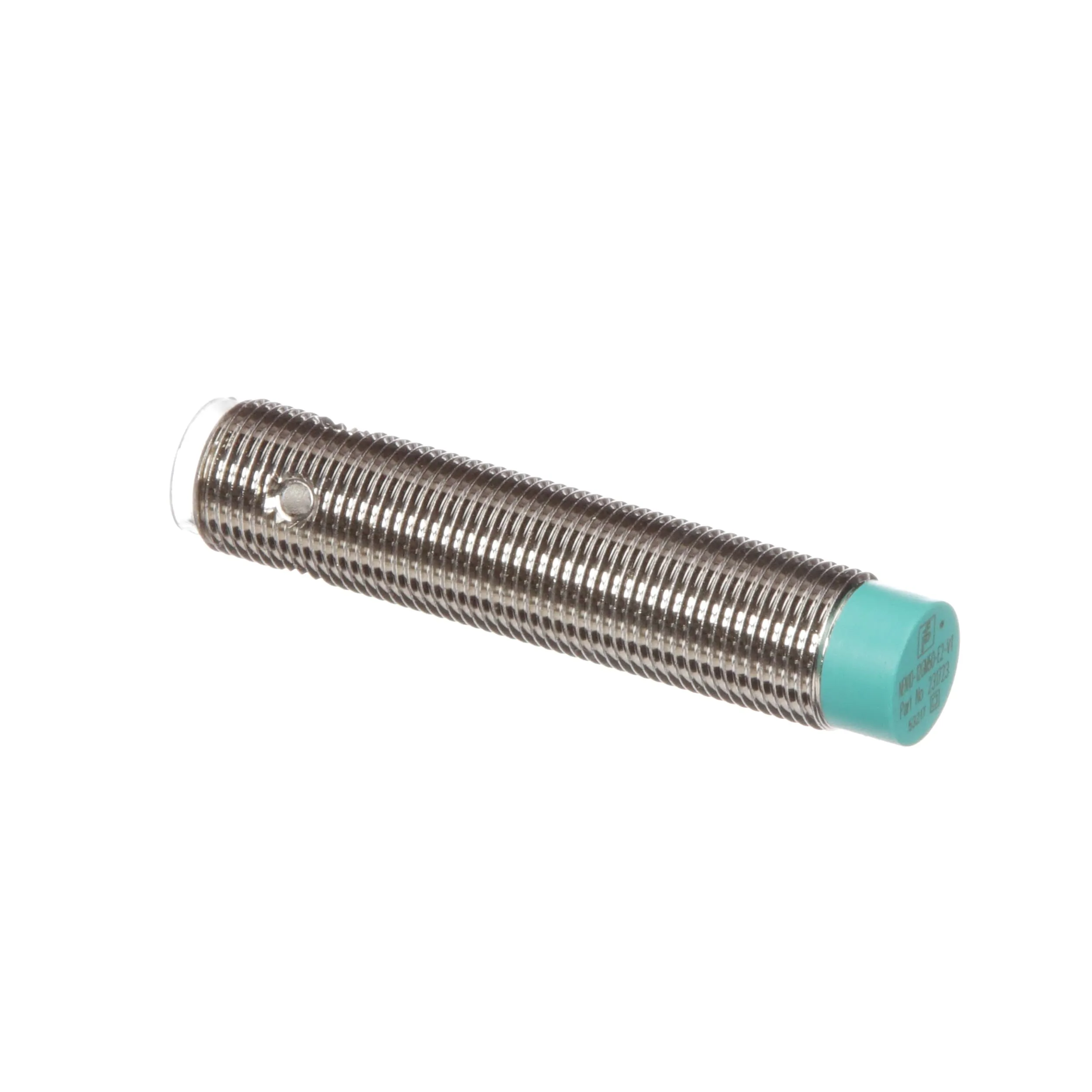

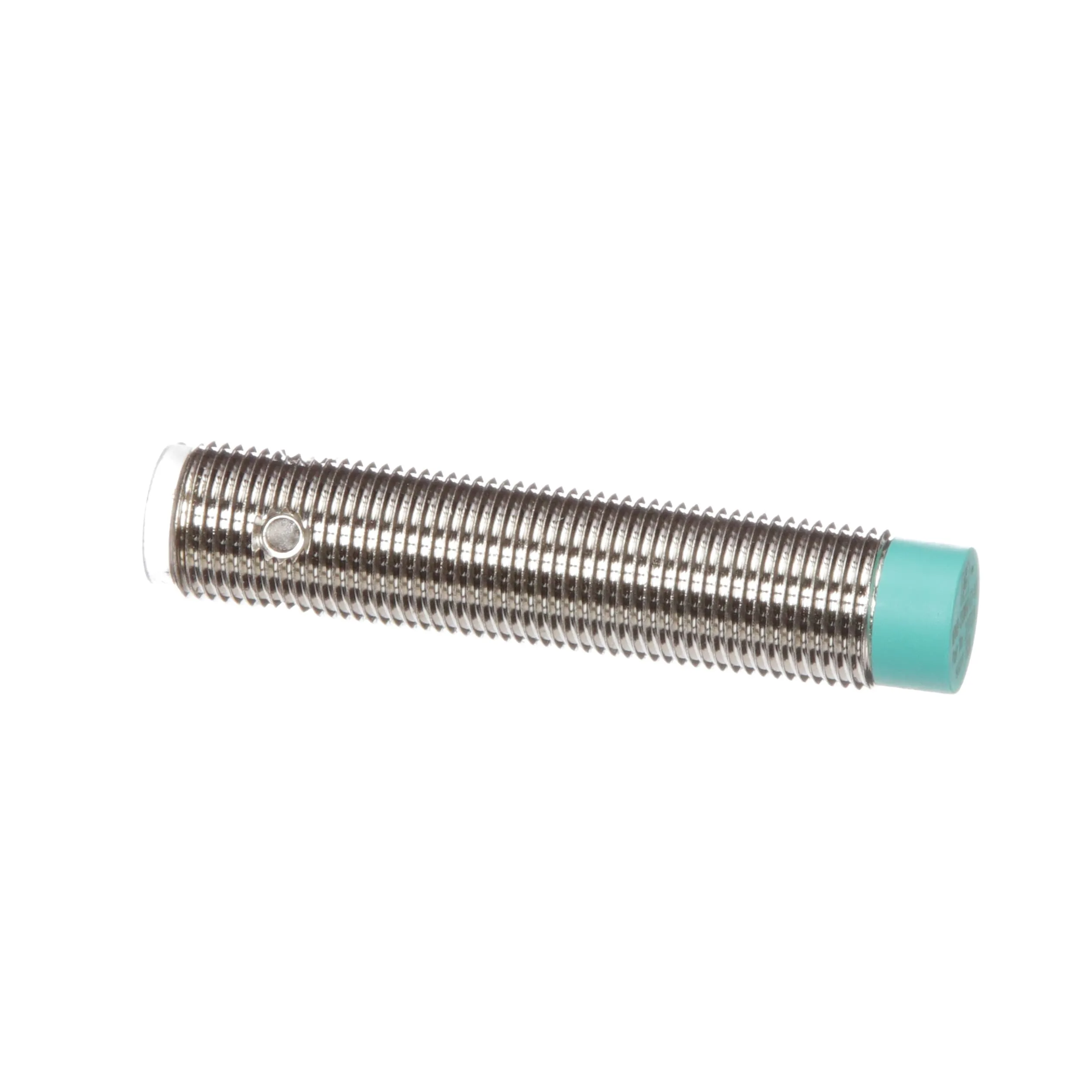

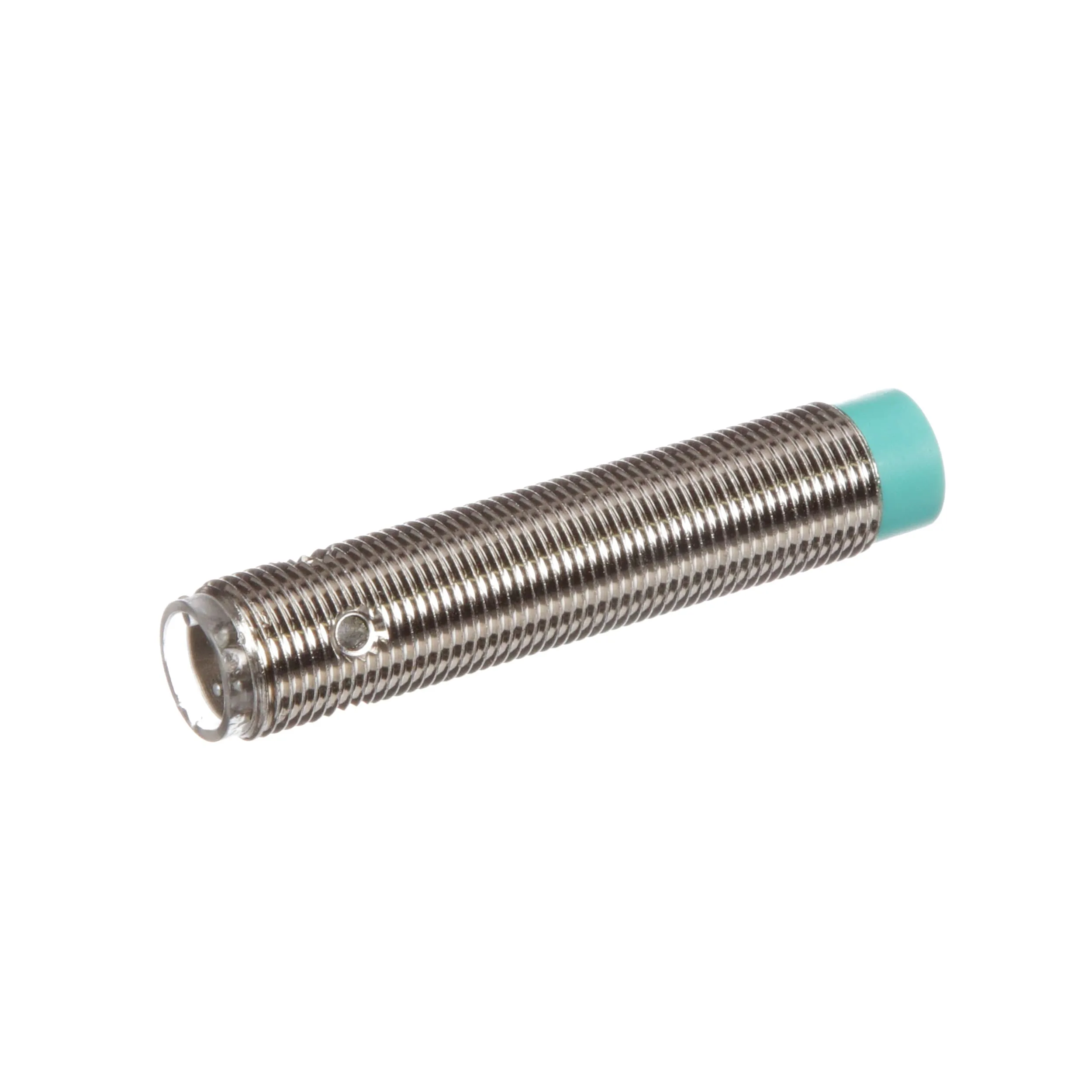

Model Number: NEN10-12GM50-E2-V1
Features:
