Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 131306 |
| Body Style | Cylindrical |

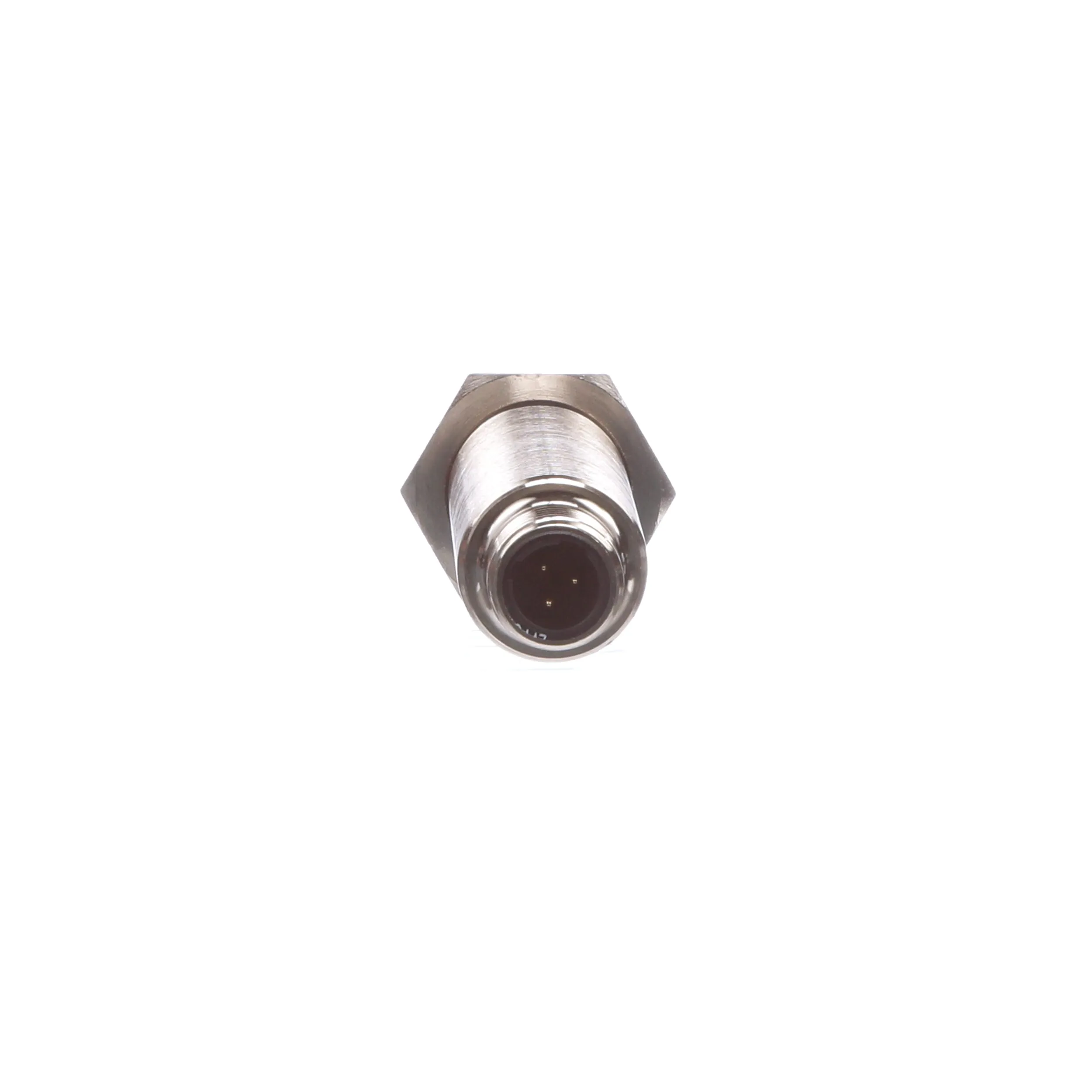

| Connection Type | Micro 1/2 in 3-Pin |
| Current, Switching | 200 mA |
| Frequency, Switching | 0.02 kHz |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M18 Threaded Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Shielded |
| Standards | UL Listed, CSA Certified, CE Marked |
| Supply Voltage | 20-253 VAC |
| Termination | 2-wire |
| Voltage Regulation | AC |
Overview

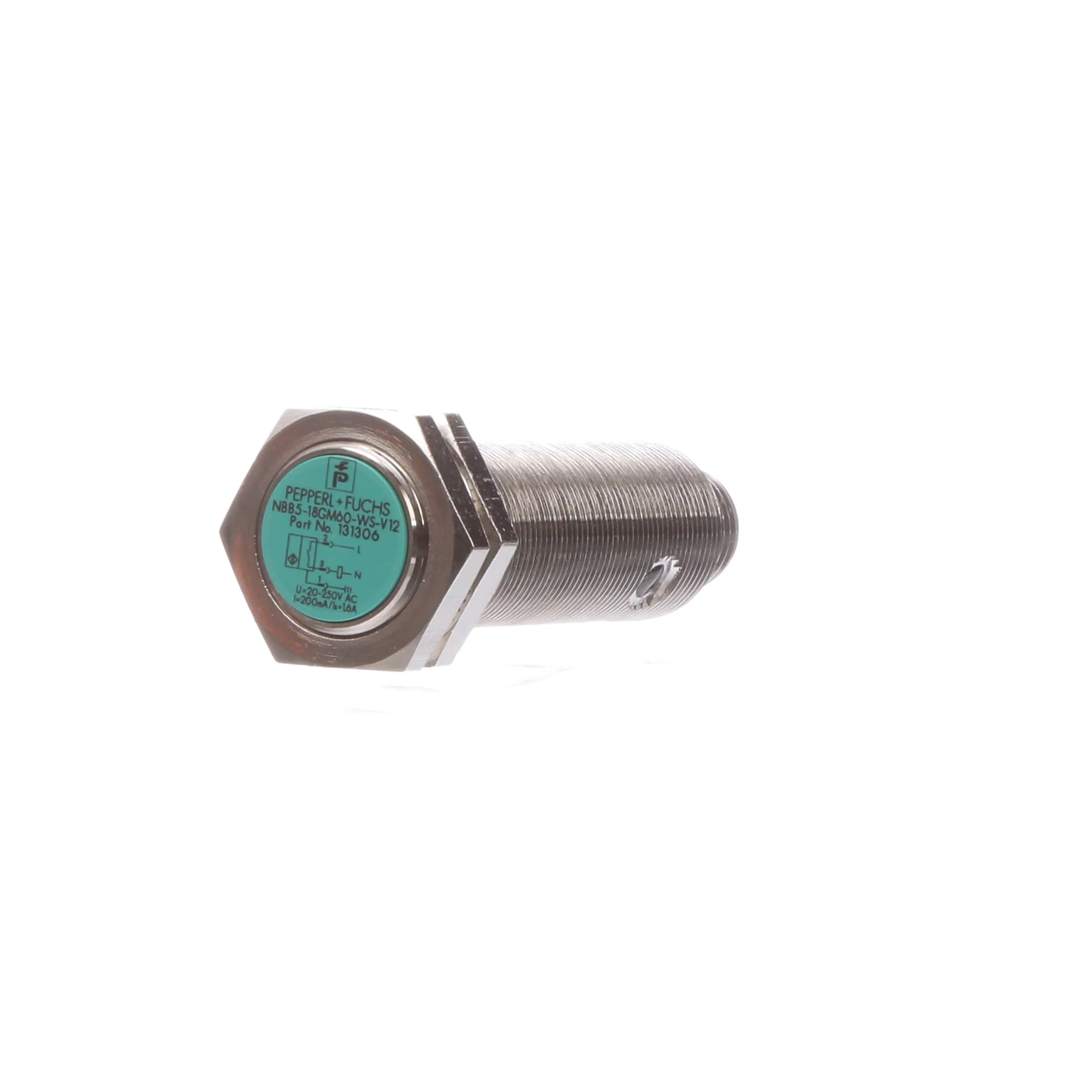

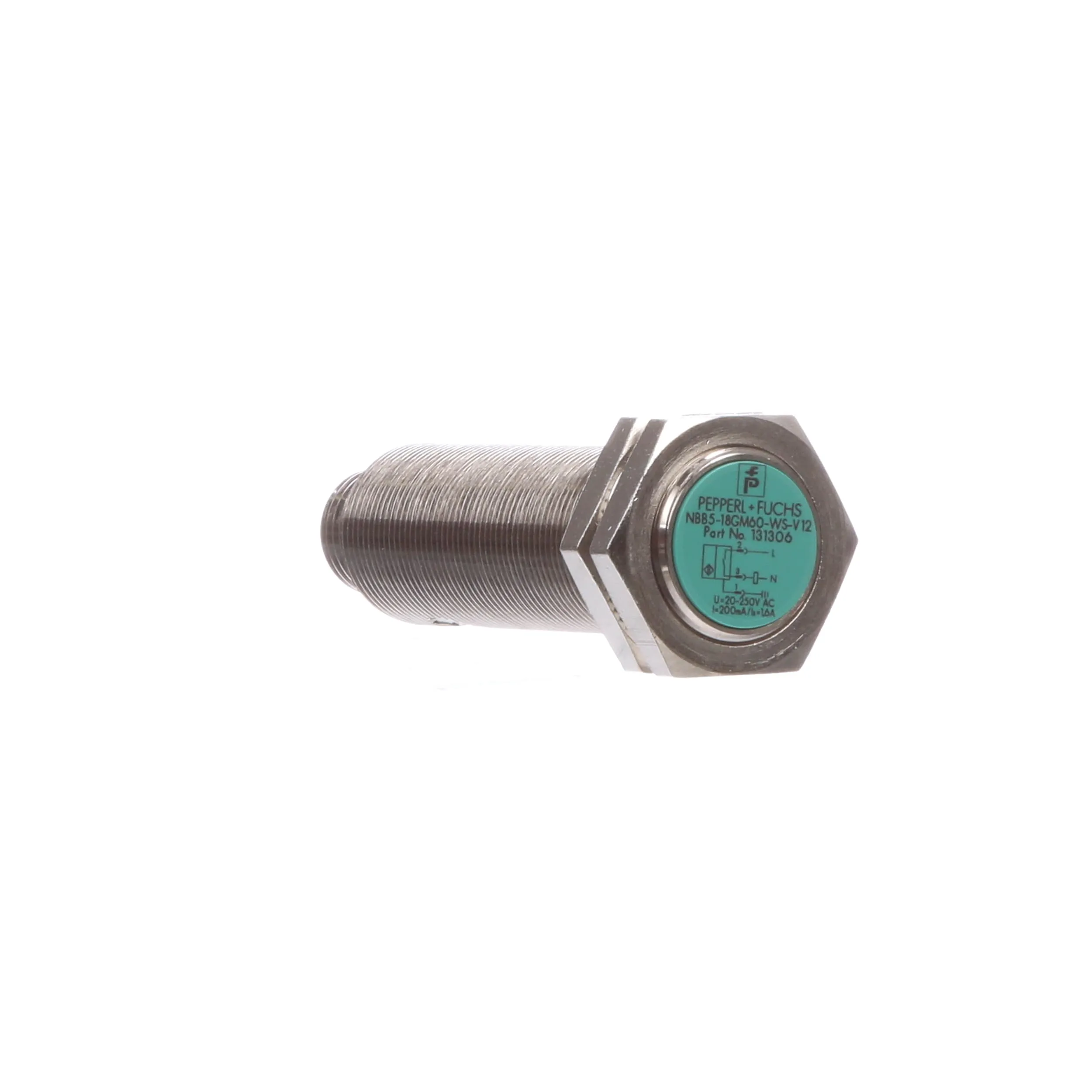

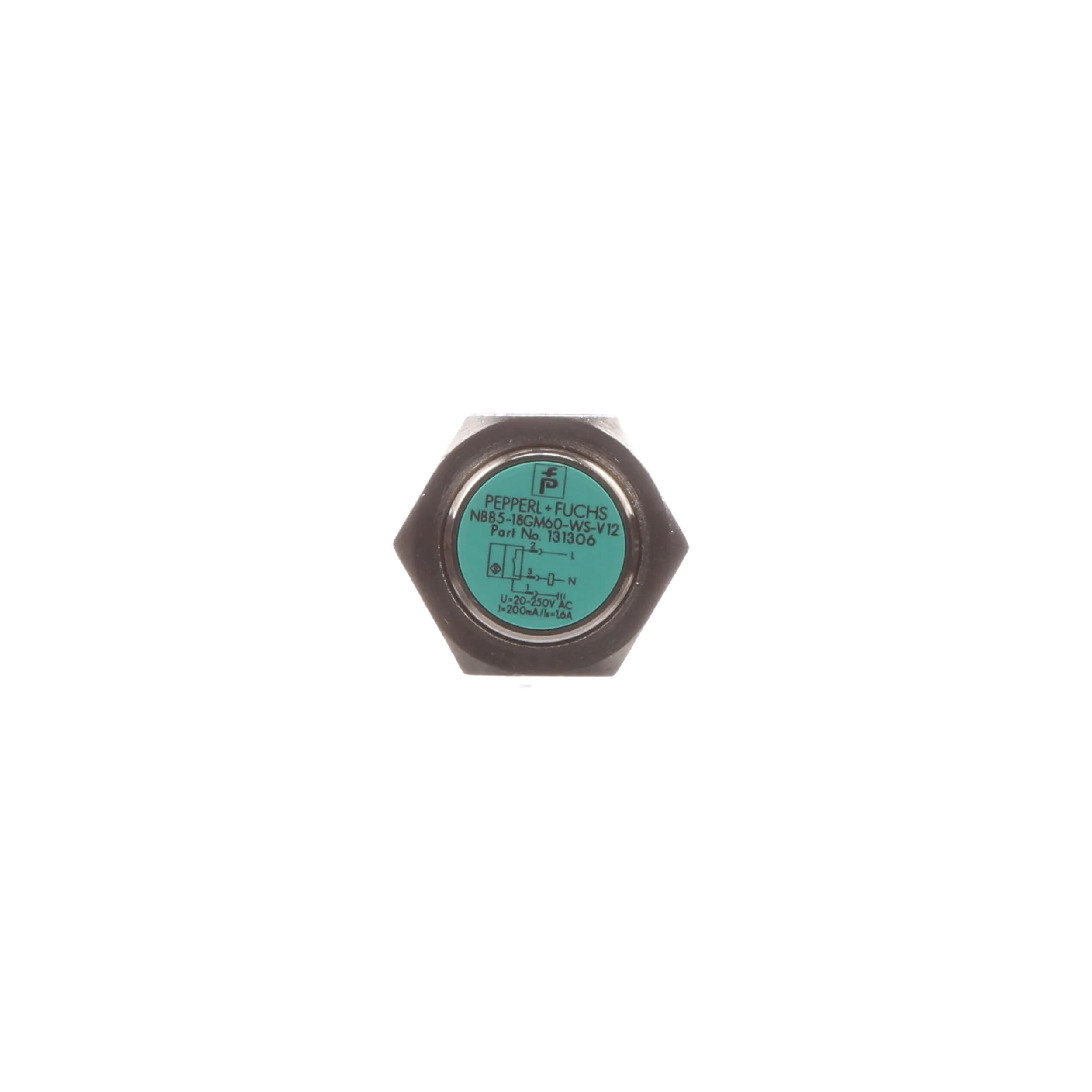

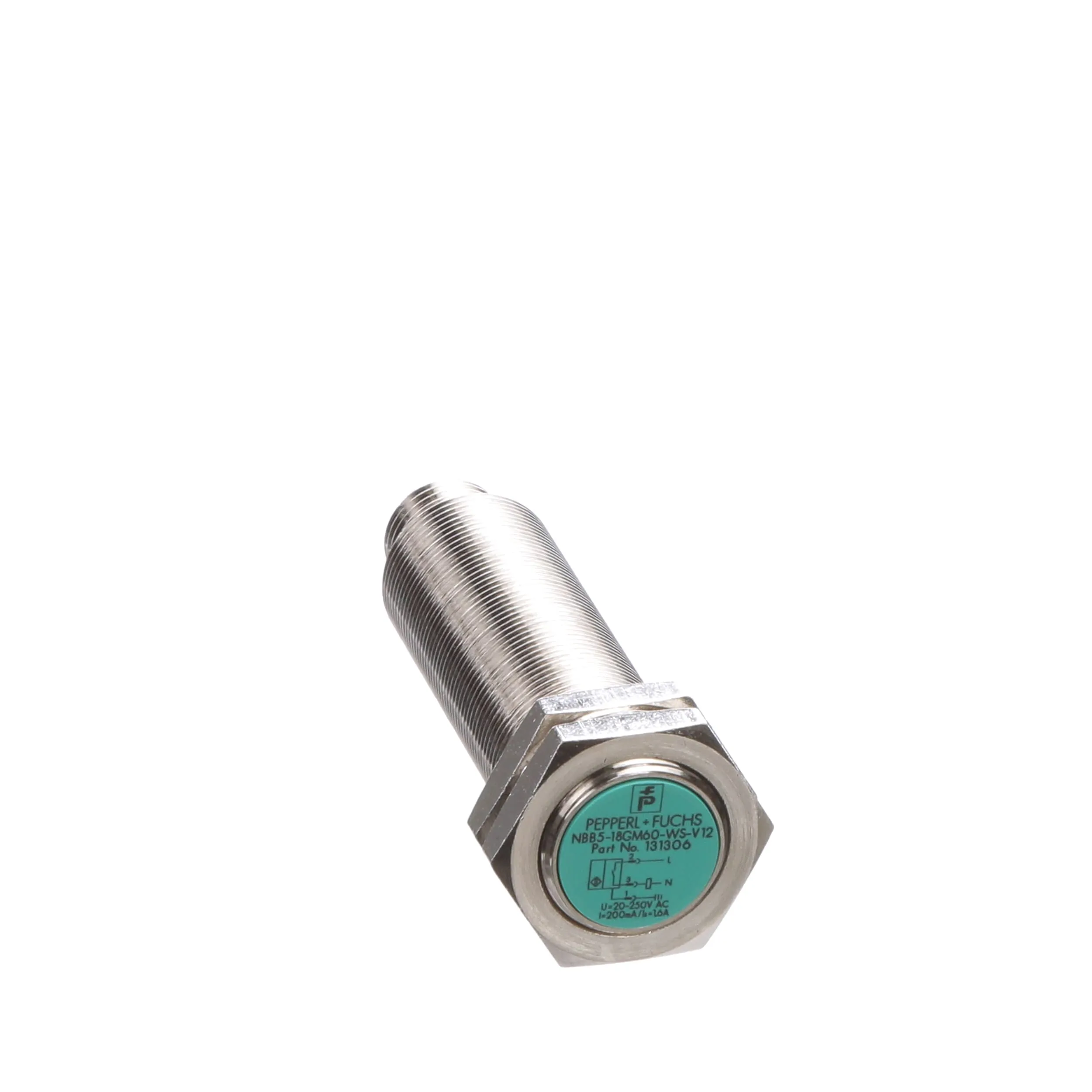

Inductive Proximity Sensor, 5 mm Sensor Range, 20 VAC to 250 VAC Voltage Rating
25 Hz frequency switching. Nickel plated brass material housing.
