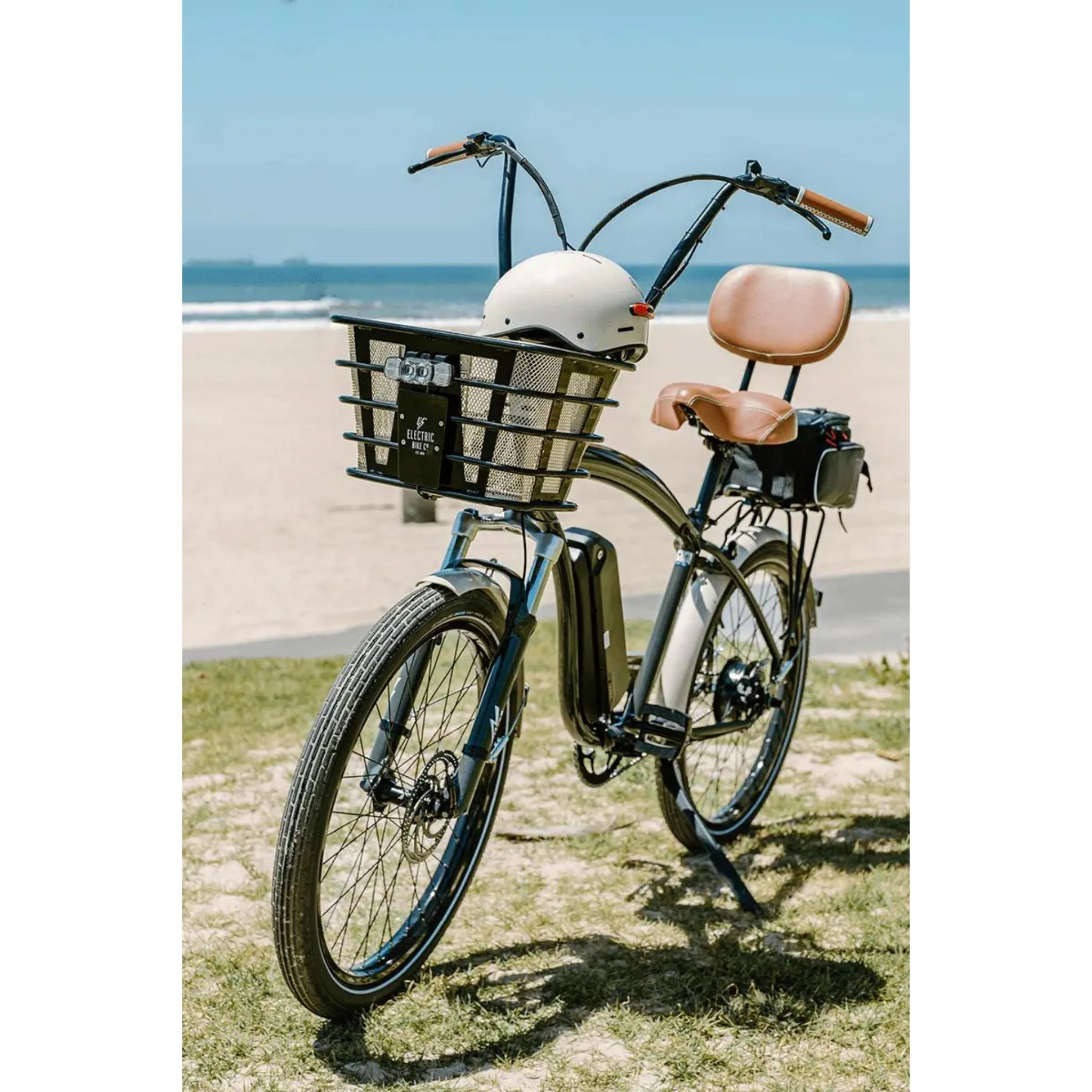

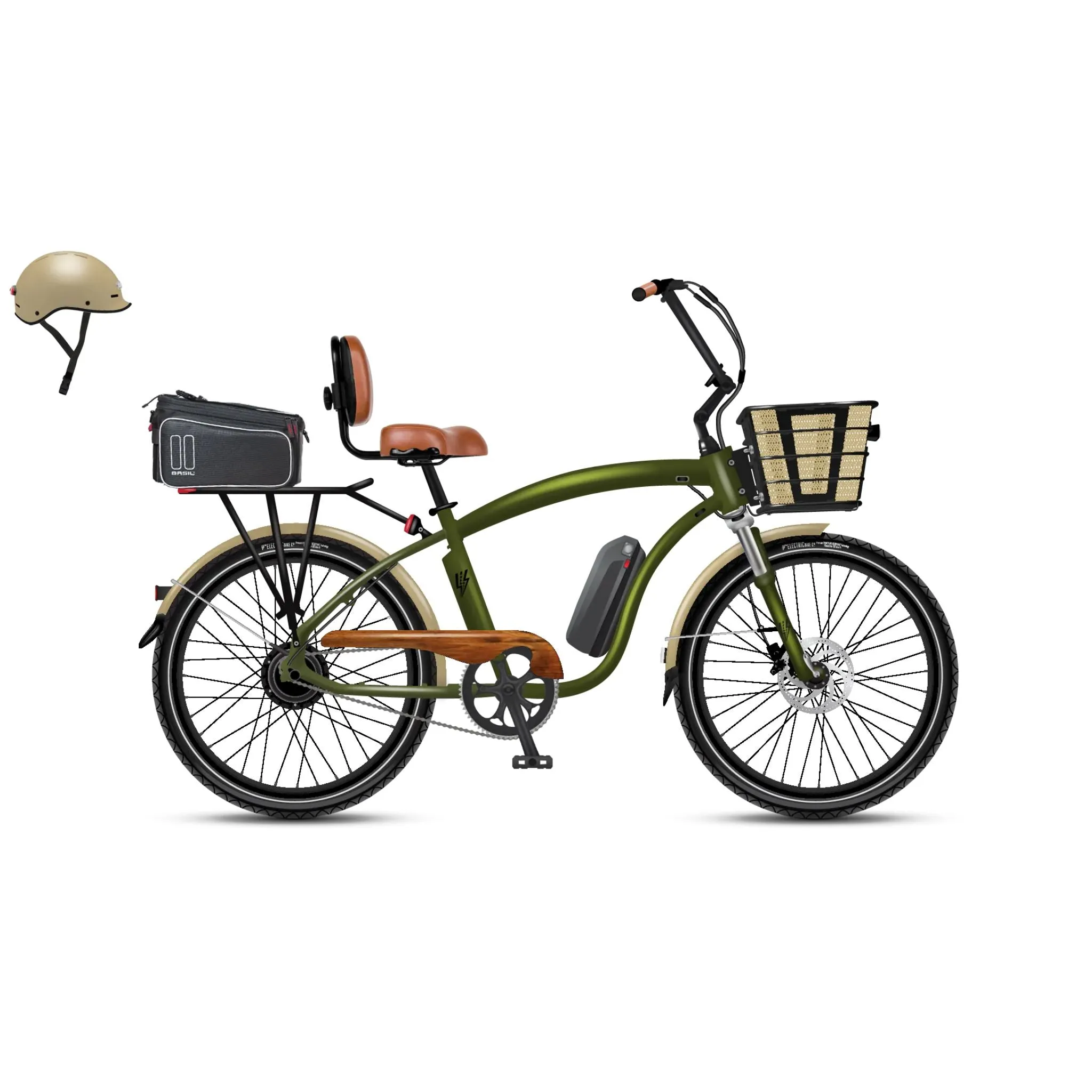

The Model C (former Model A) is a classic style utility electric cruiser with long-range battery life making this the perfect ride for commuters, with integrated charger and retractable cord for on-the-go charging.

E-BIKE BUNDLE comes in:

• Army Green
• Tan leather stitched grips
• Tan seat
• All-weather wood chain guard
• Desert Storm fenders
• Front & back lights
• Front basket
• Rear basil trunk bag with MIK plate for easy accessory swaps
• 26-inch wheels

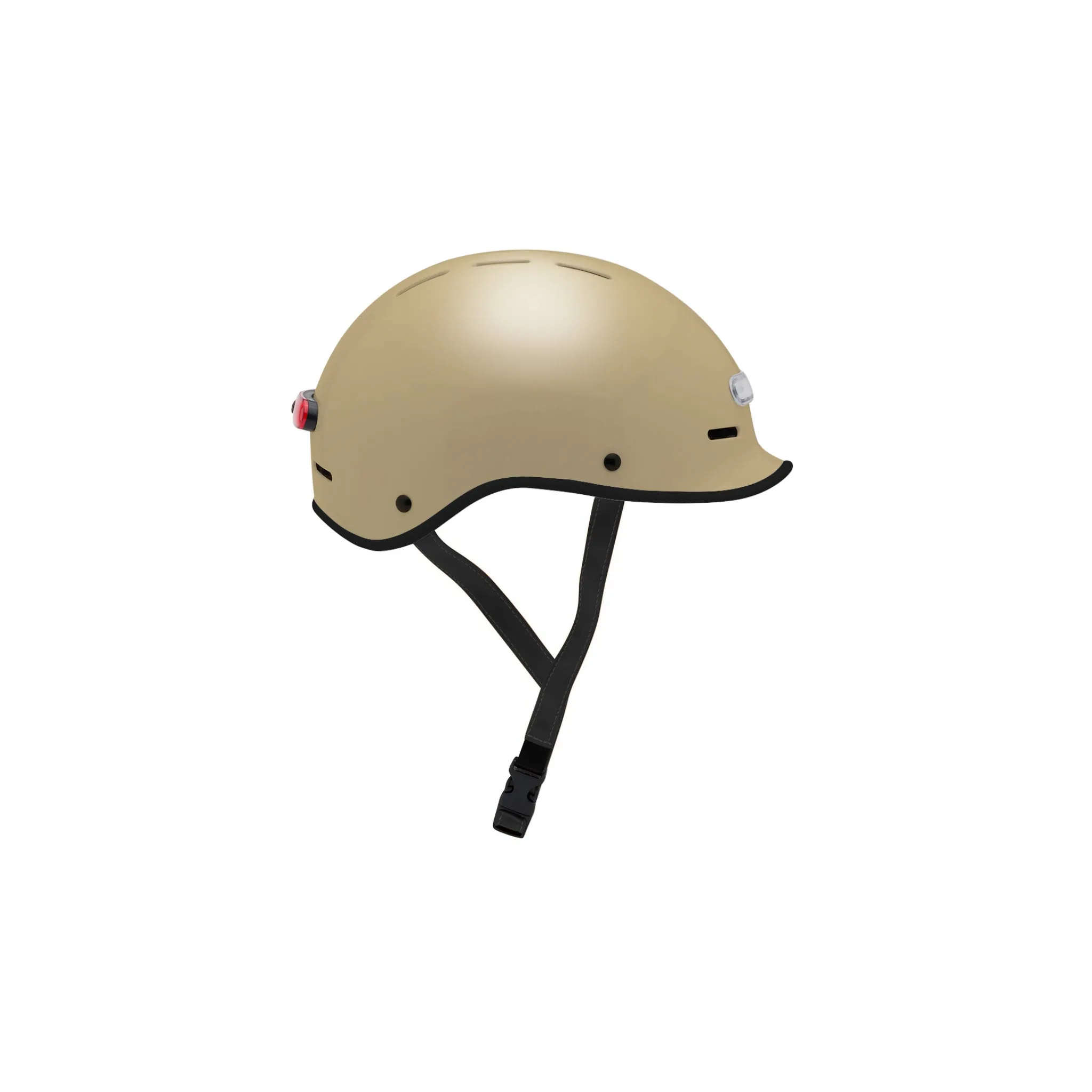

• Desert Storm E-helmet

Awarded top rated E-Cruiser in USA by (Electric Bike Review 2018 / 2019 / 2020 / 2021 / 2022 / 2023).

Highlights:

• MAX SPEED: 28 mph*
• MOTOR POWER: 750W Peak
• RANGE: Up to 60 miles
• WEIGHT CAPACITY: 420 lbs

*Factory settings 20mph Throttle / 20mph PAS (Can re-program to 28 mph PAS once confirmed with local city regulations.

Battery Features

• Range 60 Miles (10.5 Ah)
• EBC approved and certified Lithium-Ion NMC Cells
• 2 year warranty*
• 2.5 Amp Smart Super Charger with Smart charging technology, cooling fan, aluminum cover & 3 prong charging port for safety

Cargo Features

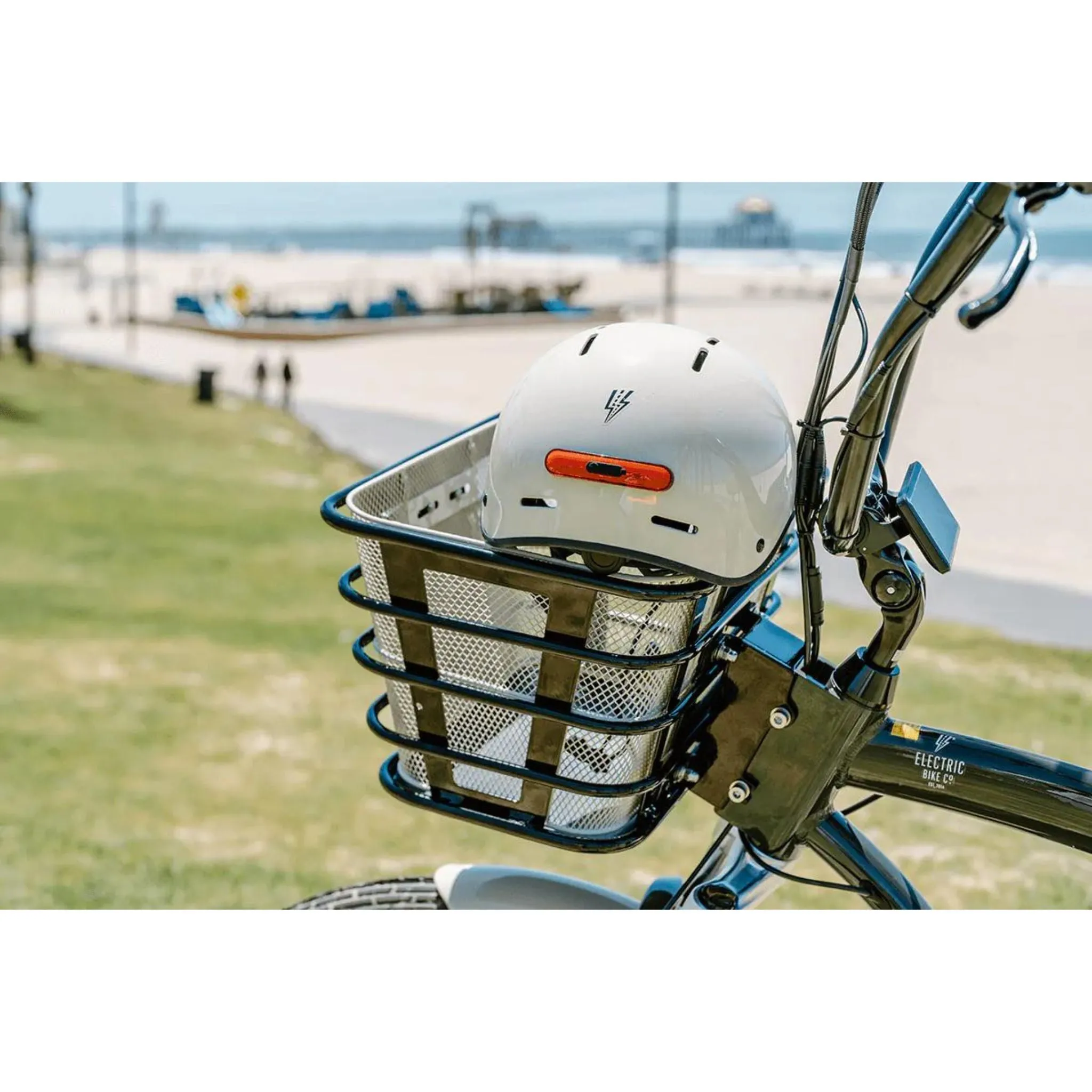

Front basket with Safety LED lights

• Enhance your Electric Bike Company ride with our sleek, functional basket. This accessory combines style and practicality for all riders.
• Robust metal mesh construction
• Integrated dual LED front lighting for safety
• Spacious interior - holds up to 65 lbs
• Weatherproof and easy to clean

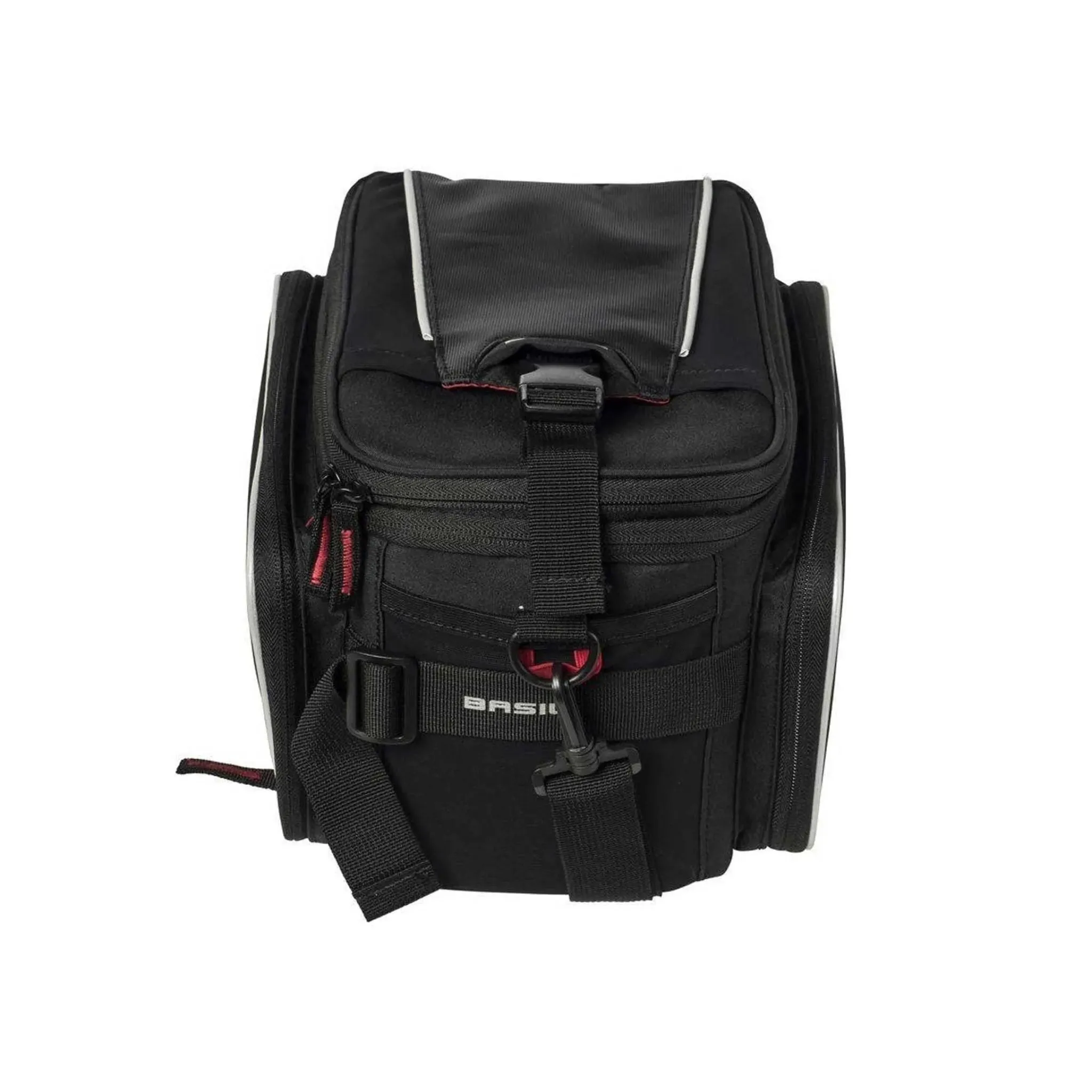

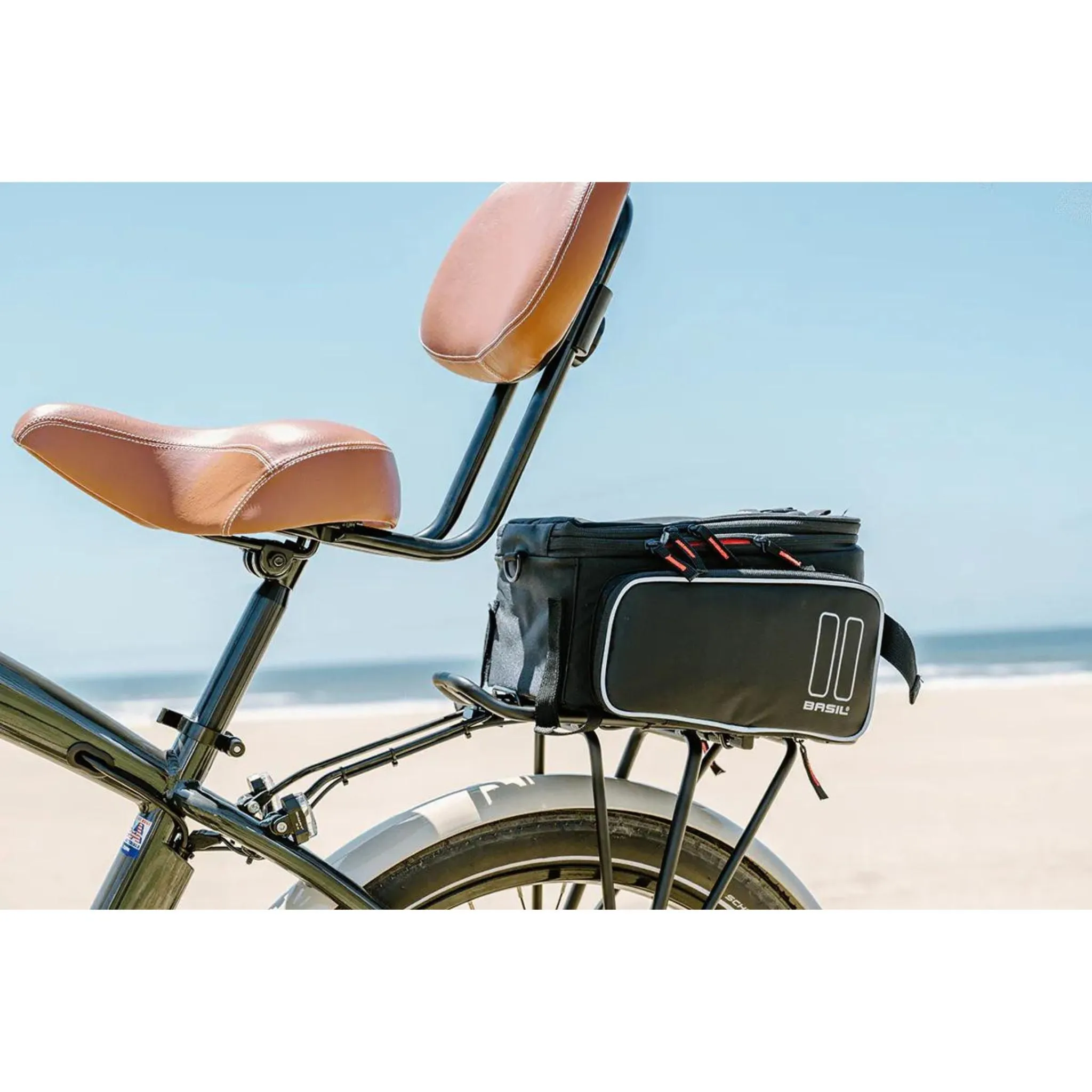

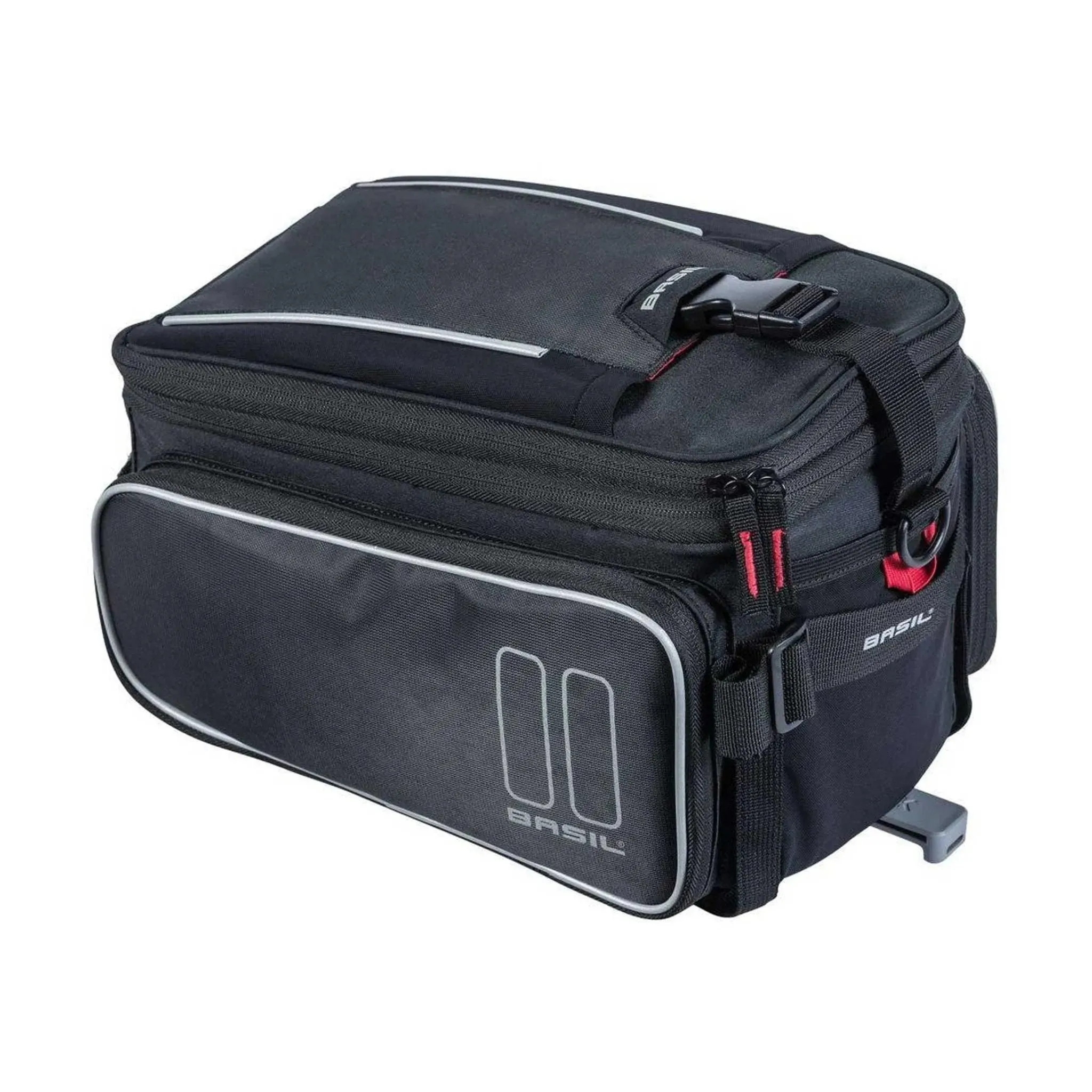

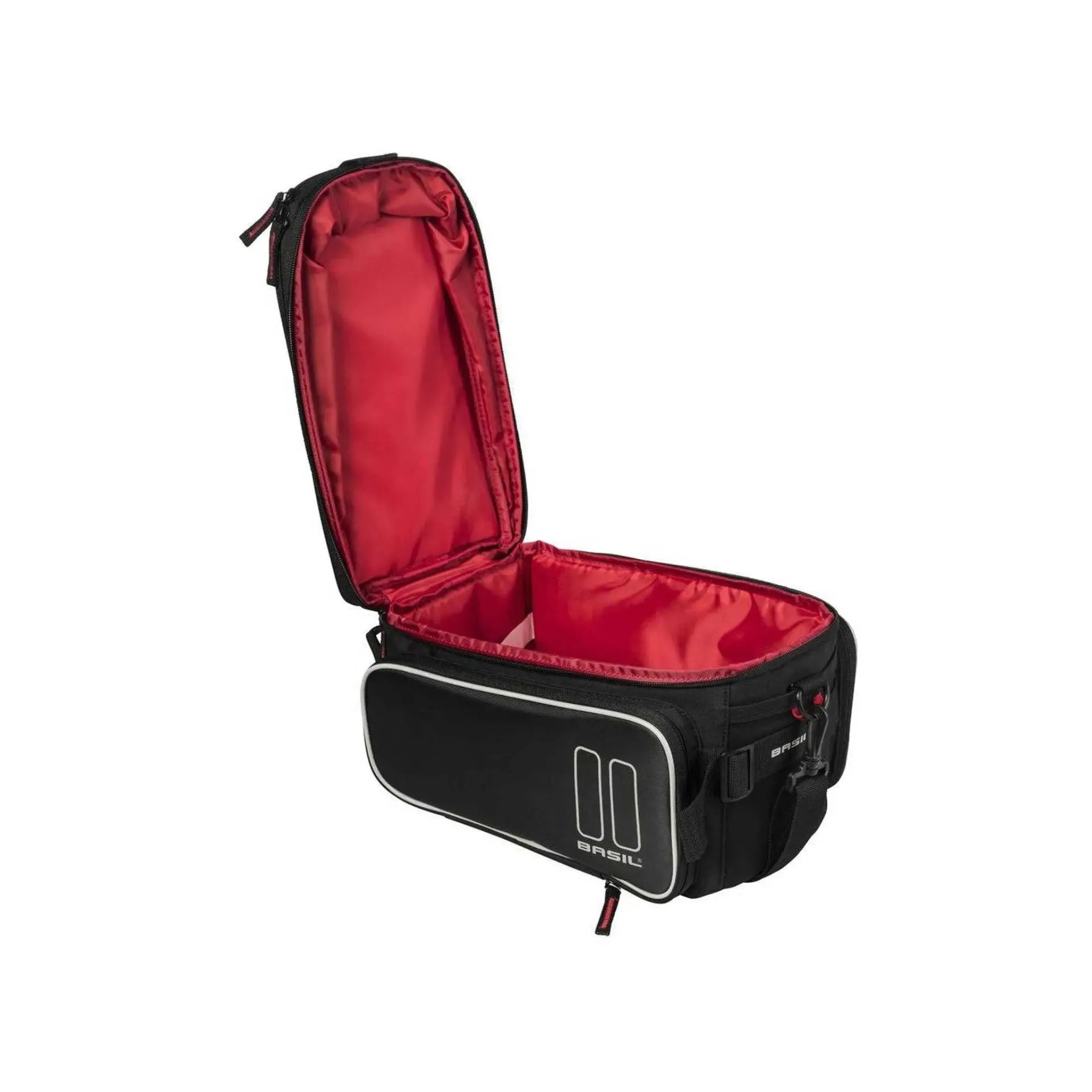

Basil Sport Design Trunk Bag (MIK)

• Spacious luggage carrier bag with an expanding capacity of 7-15 litres.
• The bag is equipped with various compartments that you can open with a zipper, so you can create more space for your essentials.
• The removable shoulder strap allows you to carry the bag comfortably over your shoulder when you’re not cycling.
• The top case is made of black polyester and the inner lining boasts a striking slick red color.
• The luggage carrier bag has reflection on all sides. The piping is also reflective, making you more visible in the dark.

Specs

• MODEL: Model C (former Model A)
• MOTOR: 10 year warranty 500w nominal 750w programmed max output due to regulation 1250w max output possible.
• BATTERY: a. 50 Miles (12 Ah) b. 110 Miles (21 Ah) - Add Basket c. 160 Miles (30 Ah) - Add Basket EBC approved and certified Lithium-Ion NMC Cells (2 year warranty*) * Please see warranty information.
• CHARGER: 2.5 Amp Smart Super Charger with Smart charging technology, cooling fan, aluminum cover & 3 prong charging port for safety.
• BRAKES: 2 Piston, Hydraulic Disc Brakes, 180 mm Stainless steel (1.8 mm thick) Comfort grip levers with motor cutoff safety sensor.
• CHAIN: Stainless Steel, Durable, Rust Resistant, Low Maintenance Patented Weather Coating.
• DRIVETRAIN: 58T Chainring Sealed bearings for durability, low maintenance and safety over time Engineered specifically for ease of rider operation, 5 Power Assist Levels (optional 7 speed derailleur) Torque Sensor Optional.
• FORK: Suspension fork with hydraulic lockout and preload adjustment, turn lockout on at anytime while riding, 80 mm travel.
• GRIPS: Hand-Stitched Leather or Rubber Cushion with palm Support Aluminium secure ends for Non slip.
• HANDLEBARS: High-rise Chopper Style
• KICKSTAND: Motor Bike Grade, Heavy Duty Non-slip sole & wide reinforced rubber foot prevents slipping and sinking.
• LCD SCREEN: Multi Level, user friendly, Interactive, Color LCD Display with USB Charging Port for phone and other accessories.
• LIGHTS: Front and Rear LED safety lights standard, Optional High/Low Beam, Turn Signals, Brake Lights, Automatic Light Sensors.
• PEDALS: Large platform with comfort non-slip rubber with sealed bearings and dual reflectors.
• WHEELS: Dished, Trued and Tension perfectly ensuring efficient tracking, safety and range. Double Walled Rims, Stainless Resistant 13G Spokes, Brass Nipples, Sealed Bearings in Hub.
• SEAT: Large super comfortable, high density foam with back bumpers for support and comfort.
• STEM Material: Alloy Stem Length: 120mm Bar clamp diameter: 25.4mm Quill: 25.4 x 180mm Adjustability: 0 - 60 degrees.
• TIRES: Puncture Resistant, Reflective Side Walls with All weather rust proof Schrader valve - Wheel Size 26x2.25".
• THROTTLE: Thumb Throttle or Half-Twist Throttle Options.
• TOP SPEED: *Factory settings 20 mph throttle and 20 mph PAS (Can re-program to 28 mph PAS once confirmed with local city regulations.
• SENSORS: Cadence sensor.
• PEDAL ASSIST: Level 1-5.
• FRAME: Aluminum 6061, Hydro-formed frame.
• WEIGHT: 53lb
• WEIGHT LIMIT: 420lb
• BOTTOM BRACKET: 124.5mm alloy cups, double snap seals for water and dirt protection.
• CRANKSET: 56T Alloy Chainring 170 mm Crank in Alloy 1/2'" x 3/32 for multispeed w/o chainguard.
• REAR COG: 16 rear cog.
• RIM: Multiple Freewheel. 14-28 Tooth 26" × 2" rim, double wall, 36 hole "13G stainless steel.
• SPOKES: 36 spokes per rim.
• TUBES: Heavy Dutv Schrader E-Bike Inner Tube, 24 or26" x 1.75-2.125".
• HUBS: 36 spoke hole, front wheel hub sealed cartridge bearings. 9mm quick release, 100mm axle 6 bolt disk rotor compatible.
• SEATPOST: 30.4mm x 300mm.
• SEAT CLAMP: Quick release.

Geometry

Owner's Manual

For Operator's Manual please click .

For Quick Start Guide please click .

For Battery Manual, please click .

Warranty

To learn more details about this product's warranty, please refer to our .
